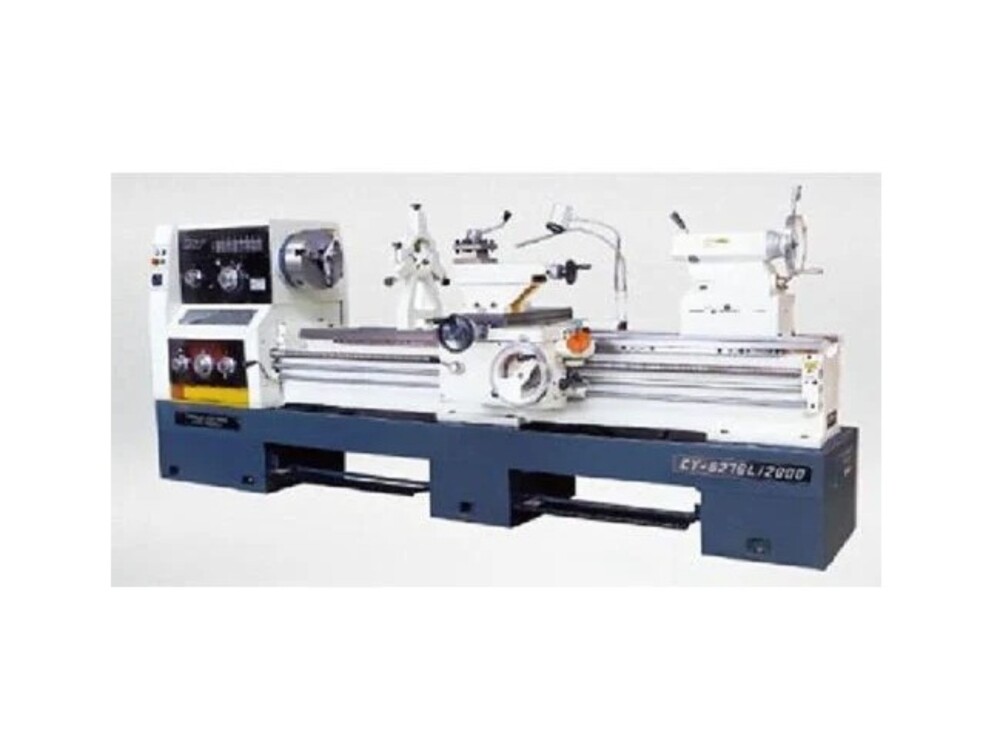

Lathe Machine Price And Quantity
- 1 Unit
- 350000 INR/Unit
Lathe Machine Product Specifications
- Cast Iron
Lathe Machine Trade Information
- All India
Product Description
A lathe machine is a versatile tool used for various machining operations, such as shaping, hollowing out, and removing material from a workpiece by turning it against a cutting tool. In metalworking, carpentry, and other industries, lathe machines are widely used to make parts like shafts, chambers, rings, and that's only the beginning. To accommodate varying workpiece features and cutting requirements, they are available in a variety of sizes and designs.
Product details of Lathe Machine:
- Coolant Pump Motor : 90 W,25L/min
- Diameter Pitch Threads : 56-1/4DP (45 pitches)
- Distance Between Centers : 1000,1500,2000,3000,4000,5000mm (4000mm & 5000mm only for CY61 series)
- Inch System Threads : 72-1/8TPI (46 pitches)
- Lead Screw Pitch : 12mm (metric system)
- Longitudinal Rapid Travelling Speed : 4.5m/min (50Hz)
- Main Motor : 7.5 kW
- Max Output Torque of Spindle : 1500 N.m
- Metric Threads : 0.5-224mm (48 pitches)
- Model No : CY-6250B
- Module Threads : 0.5-112mm (42 pitches)
- Range of Cross Feed : 0.12-2.73mm/rev
- Range of Longitudinal Feed : 0.028-6.43mm/rev
- Rapid Feed Motor : 250 W
- Spindle Bore Diameter : 82mm
- Spindle Speed : 9-1600rpm (24 steps)
- Spindle Taper : MT6
- Swing in Gap : 710mm
- Swing Over Bed : 500mm
- Swing Over Cross Slide : 300mm
- Tailstock Quill Diameter : 75mm
- Tailstock Quill Max Travel : 150mm
- Tailstock Quill Taper : MTS
- Top Slide Travel : 150mm
- Transversal Rapid Travelling Speed : 1.9m/min (50Hz)
- Width of Bed : 390mm
- Width of Gap : 240mm
- Spindle Nose : D8
- Cross Slide Travel : 340 mm
- Material : Cast Iron
- Layout : Horizontal
FAQs of Lathe Machine:
Q: What is a lathe machine?
A: A lathe machine is a machine instrument that turns a workpiece while a slicing device is utilized to eliminate material from the workpiece to make round and hollow shapes and elements.
Q: How does a lathe machine work?
A: The workpiece is cinched onto a shaft that turns at a controlled speed. The cutting instrument, which is held by a device post, moves along the workpiece's surface to perform cutting, molding, and machining tasks.
Q: What are the principal parts of a lathe machine?
A: The primary parts incorporate the headstock, shaft, toss, tailstock, carriage, cross-slide, instrument post, and feed components.
Q: What sorts of materials can be machined utilizing a lathe machine?
A: Lathe machines can work with a large number of materials, including metals (steel, aluminum, metal), plastics, wood, and, surprisingly, a few composites.
Q: What sorts of tasks can be performed with a lathe machine?
A: Lathe machines can perform different tasks like turning (outside and inside), confronting, tighten turning, stringing, cutting, knurling, and the sky is the limit from there.
Q: What are the various kinds of lathe machines?
A: There are different kinds of lathe machines, including motor lathes, seat lathes, toolroom lathes, CNC lathes, and particular lathes like hole bed and turret lathes.
Q: What is the job of a CNC lathe machine?
A: A CNC (PC Mathematical Control) lathe machine is robotized and constrained by PC programming. It considers exact and computerized machining activities in view of customized directions.
